Advanced Determination Designer

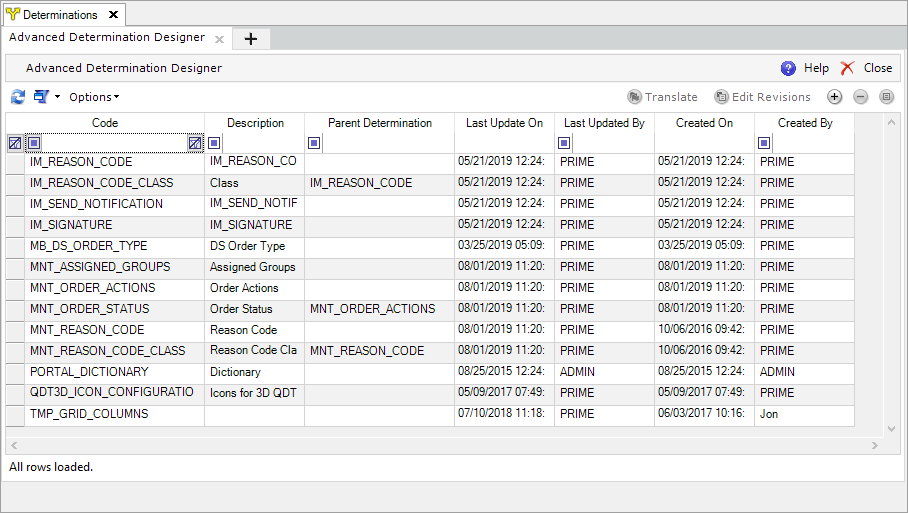

The Advanced Determination Designer screen provides features for viewing and managing Advanced Determinations. Advanced Determinations can be added, edited, and removed, and their runtime data can also be added, edited, and removed.

To Launch the Advanced Determinations Screen

• Navigate to the Advanced Determination Designer screen in the ADC.
• In DELMIA Apriso Process Builder, choose Determinations from the Managers menu and select Advanced Determination Designer

The icons on the screen represent the following actions:

Icon	Description
Translate	Opens the Dictionary Links screen with this filter: [AdvDetermination] AdvDetermination:'Determination_Code'. The grid will display Determination Code (if it has any description in any language) and Fields Code (if the field has any description in any language).
Edit Revisions	Edits the revisions of the selected Advanced Determination (see Advanced Determination Values Editor). This action is not available if the Advanced Determination has a parent assigned.
	Adds a new Advanced Determination (see Advanced Determination Designer Properties).
	Removes the selected Advanced Determination. This will delete the Advanced Determination and all of its child determinations and runtime values. Advanced Determinations can only be deleted if they have no revisions in an Active status.
	Edits the properties of the selected Advanced Determination (see Advanced Determination Designer Properties).

To Find an Advanced Determination

Click and choose one of these options:

• (Quick Filter)
• (Search) - opens a search filter to find words in all columns
• (Advanced Filter) - to create a new filter



Icon	Description
	Adds a line to the filter.
	Removes the selected line.
	Activates the filter.
	Deactivates the filter.

• (Search) - opens a search filter to find words in all columns



Icon	Description
	Finds previous.
	Finds next.
