Advanced Determination Values

To Launch Advanced Determination Values

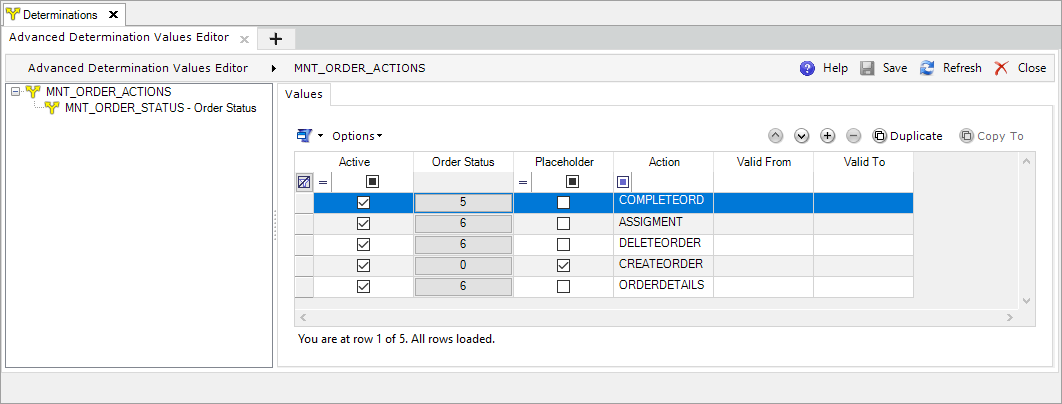

Click (Edit Values) on the Advanced Determination Values Editor screen.

The icons on the screen represent the following actions:

Icon Description
Moves the selected runtime value up in the sequence.
Moves the selected runtime value down in the sequence.
Adds a runtime value. Runtime values can only be created when the revision has a status of Design or Prototype.

In case of Determinations of Operation Business entity and selected Reference project, the Operation selected in the runtime values drop-down is validated against the selected PB Project (Reference project field) in runtime.
Deletes the selected runtime value. Runtime values can only be deleted when the revision has a status of Design or Prototype. Active runtime values can not be deleted.
Duplicate Duplicates the selected runtime value. Runtime values can only be duplicated when the revision has a status of Design or Prototype.
Copy To Copies the selected runtime value to another revision that has a status of Design or Prototype. Runtime values can not be copied from a child determination. Choose Copy All to copy all selected values, overwriting values in the target revision when necessary. Choose Copy New Only to only copy values that are in the source but not the target.

Click the button in a child Advanced Determination column to edit its runtime values based on the corresponding parent row (the number on this button represents the number of child values).

To Export Runtime Values to Excel

Open the Options menu and click Export to Excel.

To Find a Runtime Value

Click and choose one of these options:
