Labor Codes

Labor Code definitions are optional and are not required to use Time Manager.

Prerequisites

There are no Time Manager-specific prerequisites for defining Labor Codes.

Definition

A Labor Code is an attribute to further classify a labor record.

File Room

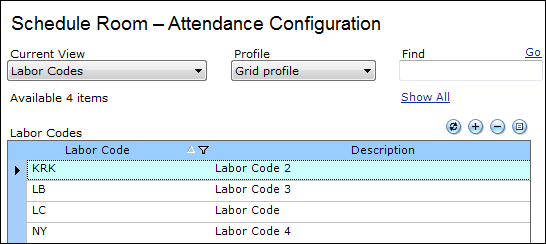

The Labor Codes file room provides a view of all the Labor Codes available by Facility in the system. Labor Codes are user-definable and the grid is personalizable through the DELMIA Apriso personalization framework. For details on personalization, refer to the Portal Implementation Guide.

To view the Labor Code Properties, double-click a Labor Code or select one and click (Properties).

To add a new Labor Code:

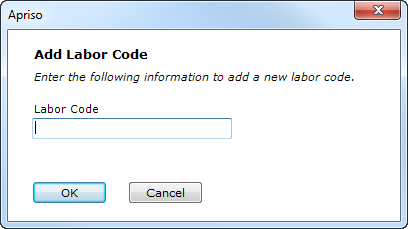

1. Click (Add) and the Add Labor Code dialog box will appear:



2. Enter a unique Labor Code.
3. Press OK.

To delete a Labor Code, click (Delete) (you will be asked for confirmation prior to deleting).

The entity will not be removed if it is being referenced elsewhere in the application.

Labor Code Properties

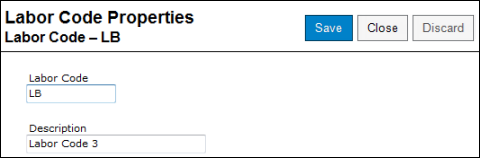

The Labor Code Properties screen enables viewing and modifying the attributes of the entity.

The header of the properties screen contains the following buttons:

• Save – pressing this will save your modifications
• Close – pressing this will save your modifications and exit the property sheet
• Discard – pressing this will abandon your modifications and exit the property sheet

You can define the following information for the Labor Code:
