Master Filtering

The Dashboard allows you to use any data aware dashboard item as a filter for other dashboard items. This feature is called Master Filtering. You can select elements in a Master Filter item (grid records, chart bars, pie segments, etc.) to filter data in other dashboard items by the selected values.

• Master Filter Modes
• Filtering Across Data Sources
• Preventing Items from Being Filtered

Master Filter Modes

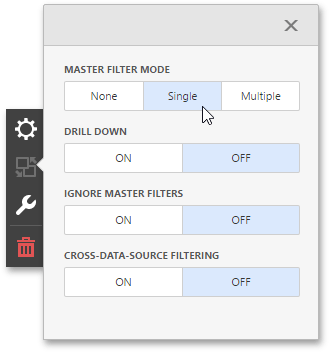

To enable master filtering, go to the dashboard item's Interactivity menu and use the Master Filtering Mode option.

The Master Filter item supports the following modes.

• None - Disables master filtering.
• Multiple - Allows you to select multiple elements in the Master Filter item. To reset filtering, use the Clear Master Filter button (the icon) in the dashboard item's caption.
• Single - Allows you to select only one element in the Master Filter item. When this mode is enabled, the default selection will be set to a Master Filter element. You can change this selection, but cannot clear it.

To disable the Master Filter, select None as a Master Filter mode.

Filtering Across Data Sources

When different items in a dashboard are bound to different data sources, you can specify that a particular Master Filter should be applied across data sources. This means that it will apply filtering to fields with matching names in all data sources.

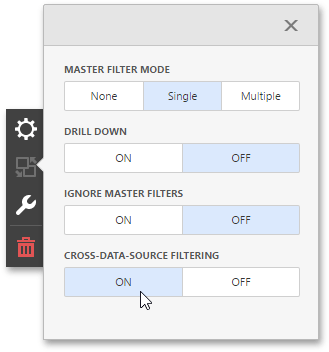

To filter data across data sources, enable the Cross-Data-Source Filtering in the dashboard item's Interactivity menu.

Preventing Items from Being Filtered

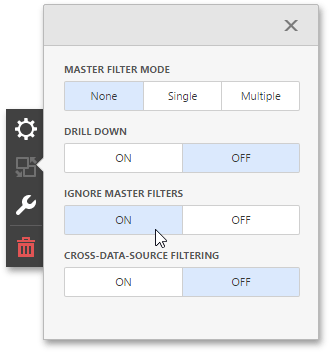

You can prevent specific dashboard items from being affected by Master Filters. To do this, enable the Ignore Master Filters option in the dashboard item's Interactivity menu.
